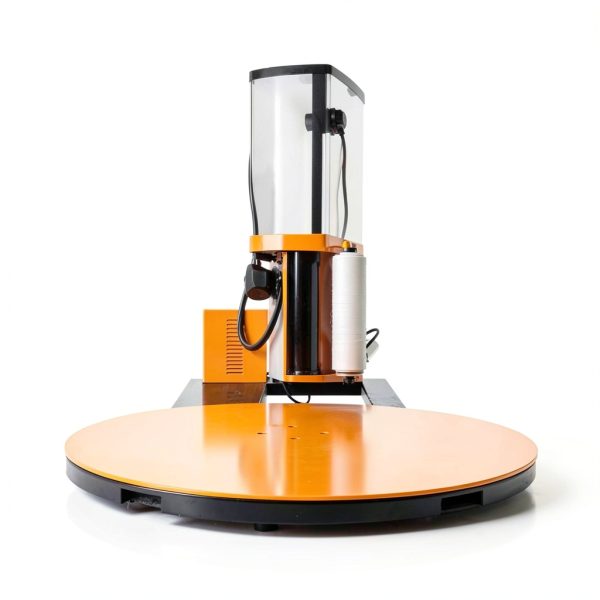

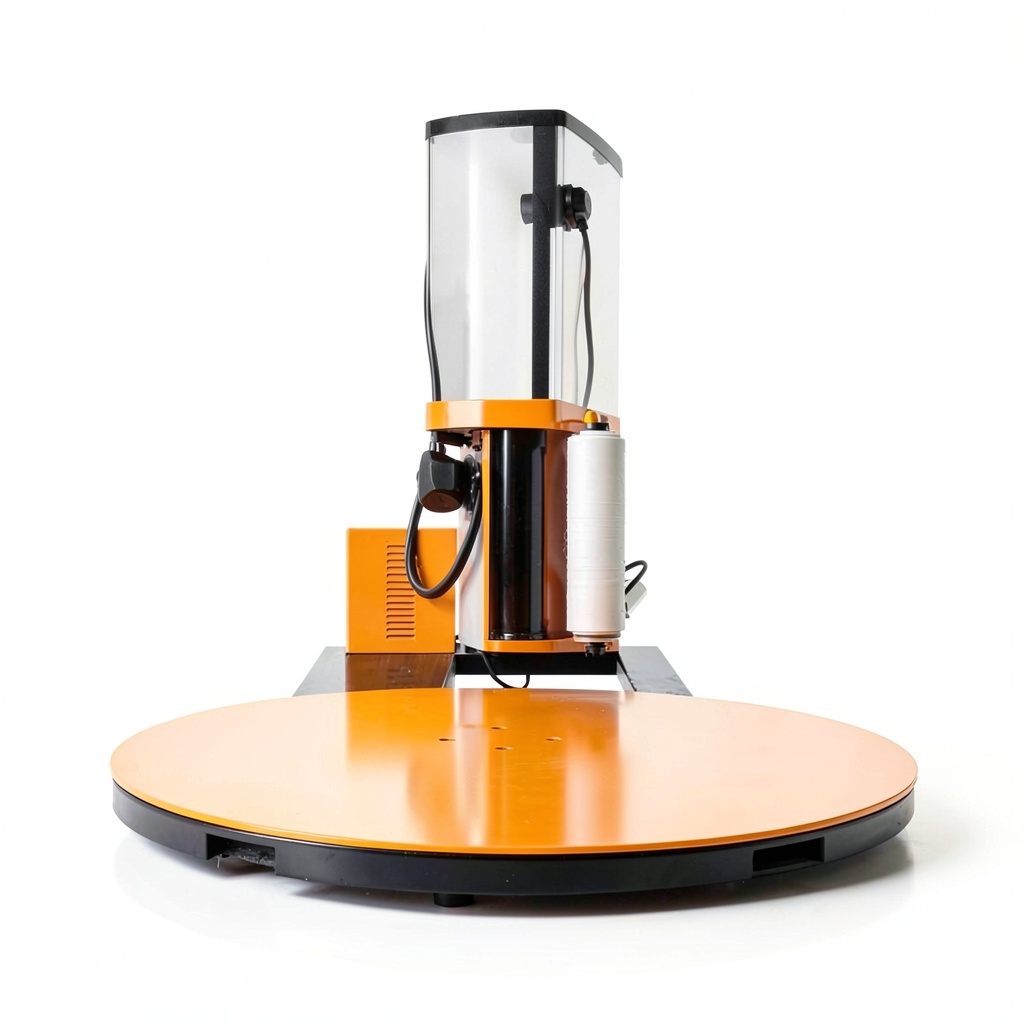

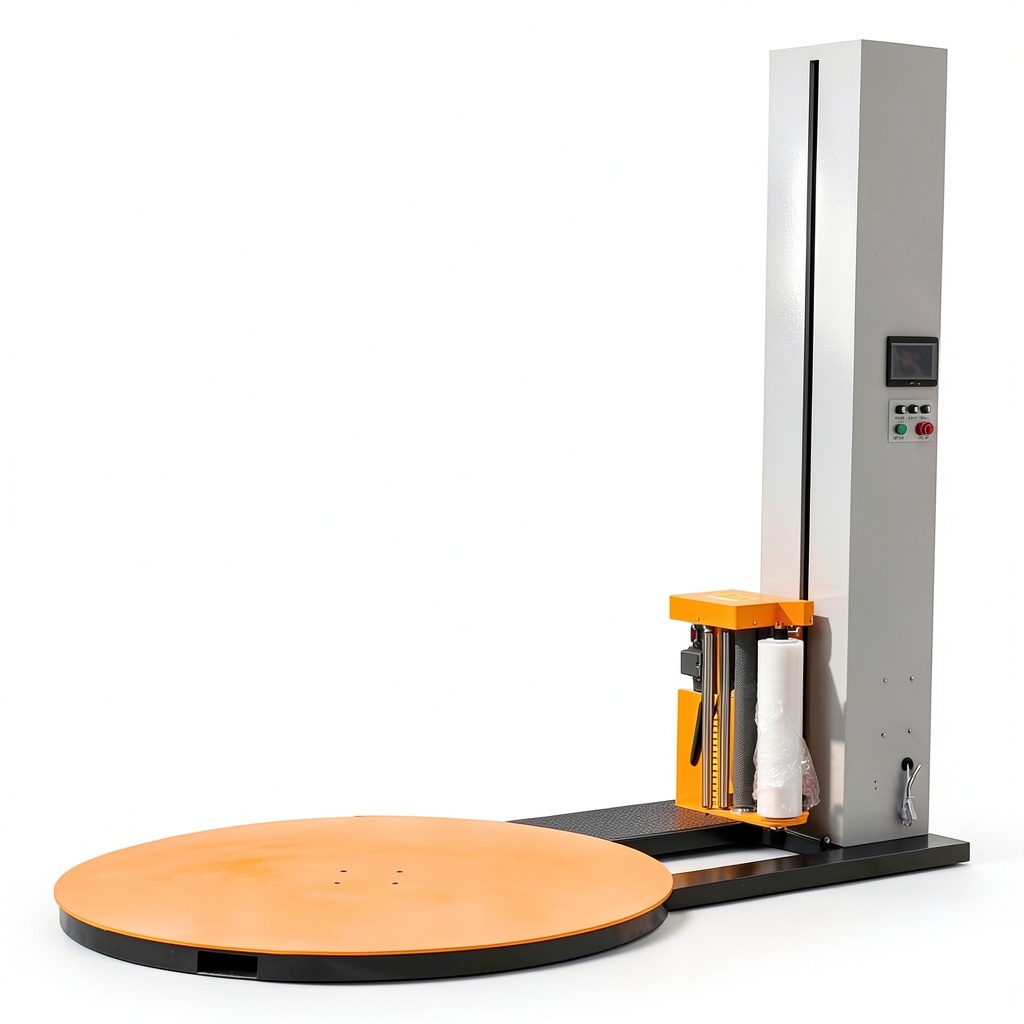

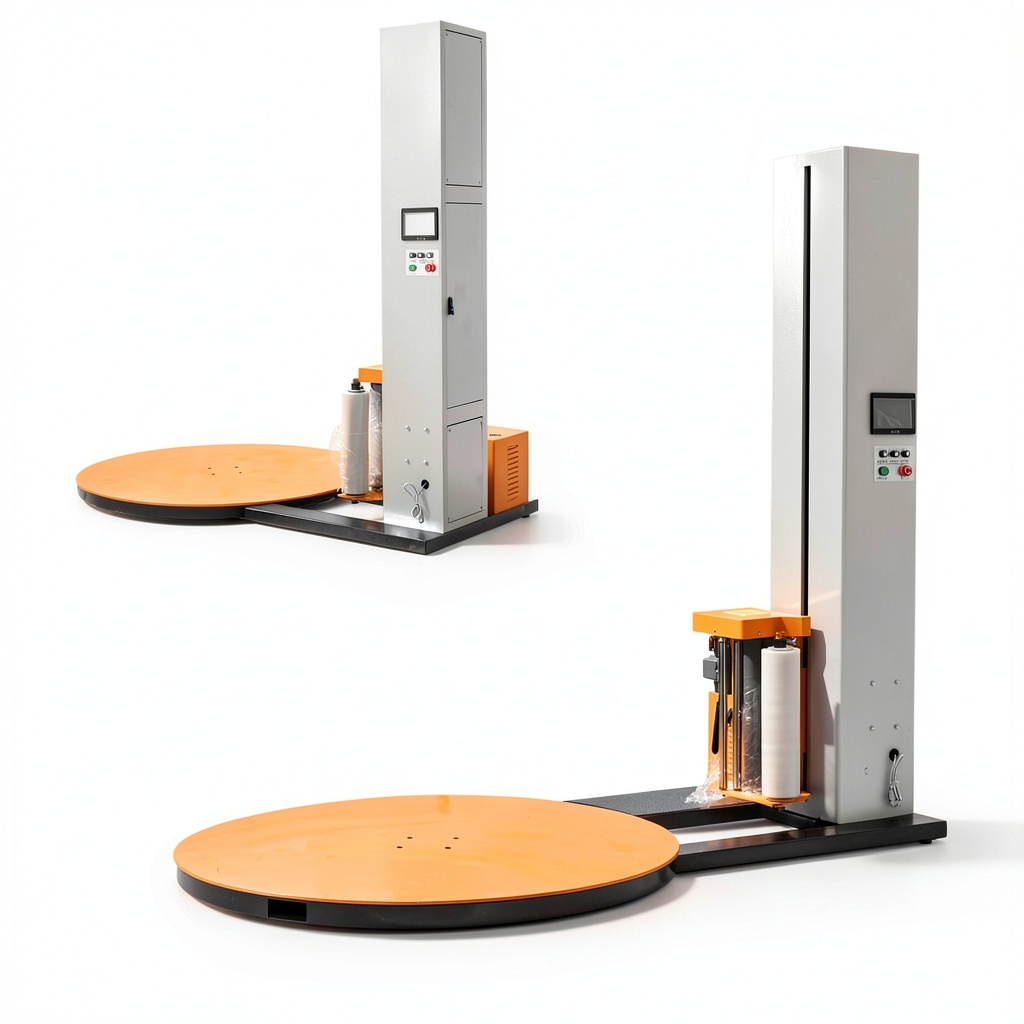

Industrial Pallet Wrapping Machine Fworkleft 65in Turntable Heavy Duty

Description

Product Overview

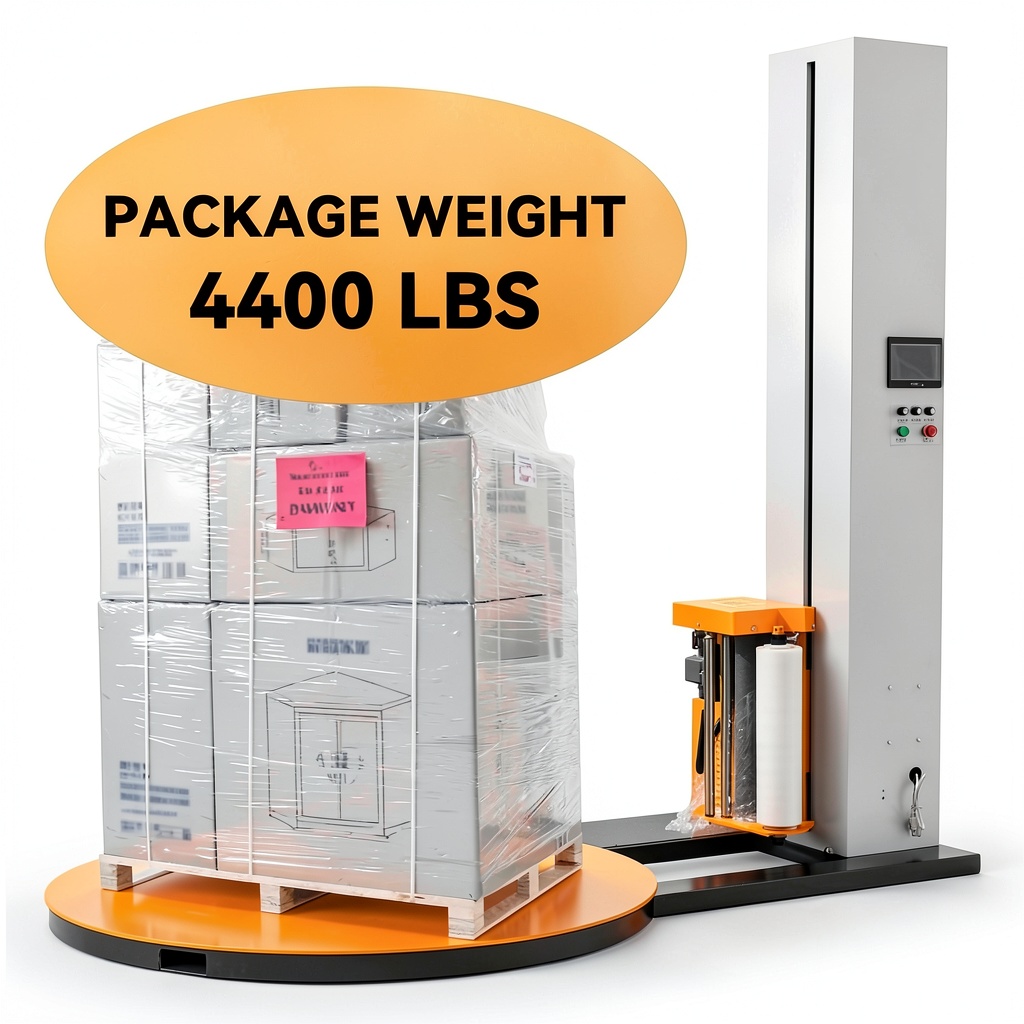

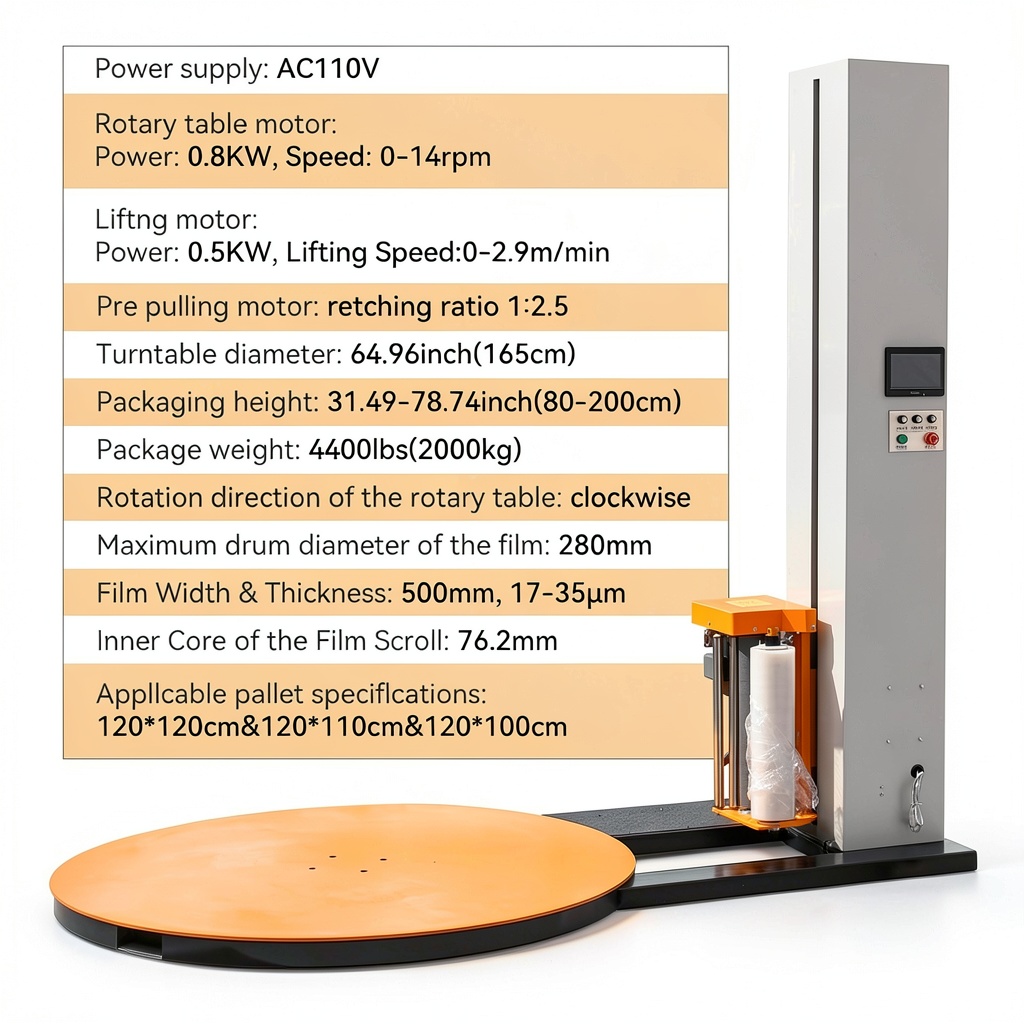

The Industrial Pallet Wrapping Machine from Fworkleft is engineered for demanding warehouse environments where speed, reliability, and durability are non‑negotiable. At the heart of the system is a 65‑inch diameter turntable capable of rotating heavy pallets smoothly at adjustable speeds between 6 and 14 revolutions per minute. This turntable can support a maximum load of 4,400 pounds, allowing operators to process large, bulky items without fear of over‑loading the equipment.

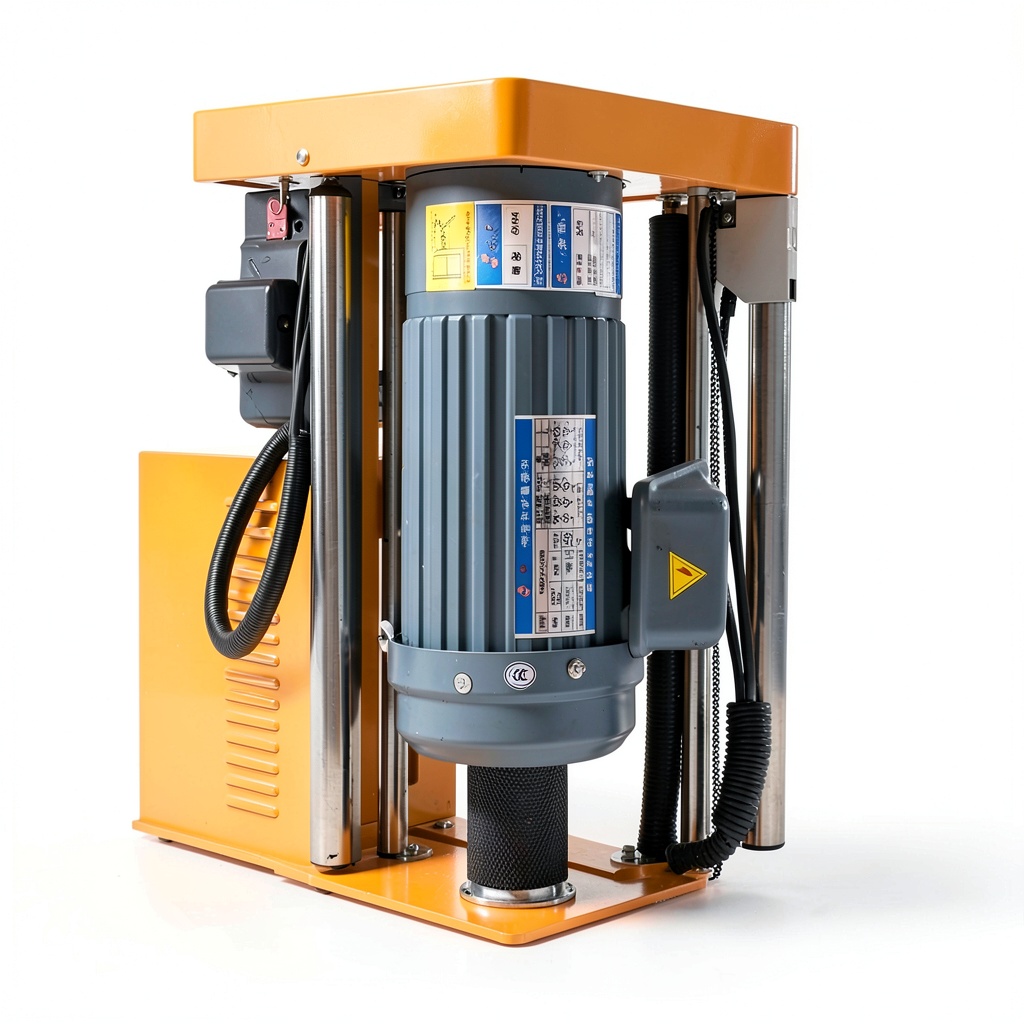

Constructed from high‑strength steel and finished with a corrosion‑resistant coating, the frame provides a stable platform that minimizes vibration and noise during operation. The machine is powered by a 1.5 kW (1500 W) motor that draws from a dedicated AC110V 50/60 Hz supply, ensuring consistent torque and energy efficiency. All electrical connections must follow strict live/neutral/ground wiring protocols, and the unit is designed for permanent installation rather than temporary plug‑in use, which enhances safety and reduces the risk of power‑related damage.

Film handling is optimized for LLDPE stretch film, a material known for its excellent elasticity, puncture resistance, and ability to maintain tension across a wide range of temperatures. The film roll accommodates a core diameter of 76.2 mm and an outer diameter of up to 280 mm, with a width of 500 mm and thickness ranging from 17 to 35 µm. This flexibility allows users to select the appropriate film grade for various product types, from lightweight consumer goods to heavier industrial components.

Usage

Designed for warehouses, distribution centers, and logistics hubs, this machine excels in high‑throughput scenarios where pallets must be wrapped quickly and securely. Typical applications include preparing shipments for outbound freight, protecting inventory during storage, and consolidating items for bulk handling. The adjustable turntable speed enables operators to fine‑tune the wrapping process based on product dimensions and film characteristics, achieving a packaging cycle of 2 to 4 minutes per pallet.

Because the machine can accommodate pallets ranging from a minimum size of 500 mm × 500 mm × 800 mm to a maximum of 1,200 mm × 1,100 mm × 2,000 mm, it is suitable for a broad spectrum of load types. Whether you are handling small electronics, medium‑sized food packages, or large automotive parts, the system provides the flexibility needed to maintain a consistent, high‑quality wrap.

Installation requires a dedicated power circuit and a level floor surface. Once installed, the machine integrates seamlessly with existing conveyor systems, allowing for automated loading and unloading of pallets. Operators benefit from an intuitive control panel that displays real‑time speed, load, and film usage metrics, facilitating quick adjustments and minimizing downtime.

Why Choose Us

Fworkleft stands out in the industrial packaging market due to a commitment to engineering excellence and customer support. Every component of the Pallet Wrapping Machine is sourced from reputable suppliers and undergoes rigorous testing to meet ISO and CE standards. The robust construction ensures a service life of many years, even under continuous operation.

Our after‑sales service includes a comprehensive warranty that covers parts and labor, provided the machine is installed according to the specified electrical guidelines. In the unlikely event of a malfunction, our technical support team is available 24/7 to diagnose issues remotely and dispatch qualified technicians for on‑site repairs.

Beyond the hardware, we offer training programs that teach operators how to maximize efficiency, maintain the equipment, and troubleshoot common problems. This holistic approach reduces total cost of ownership and empowers businesses to achieve higher productivity without sacrificing safety.

Key Features

• High‑capacity 65‑inch turntable supports up to 4,400 lb loads for versatile pallet sizes.
• Durable LLDPE stretch film handling ensures strong, elastic wraps that protect goods during transport.
• Adjustable rotation speed (6‑14 rpm) allows fine‑tuning for different product dimensions and film types.
• Robust 1.5 kW motor and AC110V power supply deliver consistent performance with low energy consumption.
• Comprehensive warranty and 24/7 technical support provide peace of mind and rapid issue resolution.

FAQ

What is the maximum pallet size the machine can handle?

The turntable accommodates pallets from a minimum of 500 mm × 500 mm × 800 mm up to a maximum of 1,200 mm × 1,100 mm × 2,000 mm, covering most standard and oversized loads used in industrial settings.

Can the machine operate on a standard three‑phase power supply?

The unit is designed for a dedicated AC110V single‑phase supply with a 10 A circuit. For facilities with three‑phase power, a step‑down transformer or dedicated circuit breaker must be installed to meet the required specifications.

Is the LLDPE stretch film compatible with other film types?

While the machine is optimized for LLDPE stretch film, it can also process other compatible films that meet the same width (500 mm) and thickness (17‑35 µm) specifications, provided the core and outer diameters fall within the supported range.

How often should the machine be serviced?

We recommend a preventive maintenance schedule that includes monthly visual inspections, quarterly lubrication of moving parts, and an annual comprehensive service performed by a certified technician to ensure optimal performance.

What safety measures are built into the machine?

The system includes emergency stop buttons, overload sensors, and insulated wiring to prevent accidental contact. All electrical components comply with IEC safety standards, and the machine must be grounded according to local regulations.

By choosing the Fworkleft Industrial Pallet Wrapping Machine, businesses gain a reliable, high‑throughput solution that enhances packaging efficiency, reduces labor costs, and safeguards products throughout the supply chain.
